The nailing machine has high cost performance and strong practicability. Simple operation, low power consumption, stable and reliable. The quality of the equipment is up to standard and has the added advantages of compactness, ease of operation, minimal noise, power consumption and installation requirements.
Product description
The nail-making machine has the characteristics of small size, flexible and convenient movement, low noise, low energy consumption and easy installation. Its piston structure ensures high-speed operation, reduced noise, and minimal impact. It produces high quality nails and shaped nails and is ideal for high speed welders and nail guns.
During operation, the roller on the left side of the machine is automatically aligned, thus increasing production efficiency. In addition, it is equipped with a special CAM mechanism that facilitates the clamping and loosening of the wire and ensures that the front and back movement of the clamping rod is by rotating the CAM. This design increases the overall weight of the product while also reducing production costs.
Model
|
Z94-5.5C
|
Z94-4C
|
Z94-3C
|
Z94-2C
|
Z94-1C
|
Max. dia. of nail(MM)
|
5.5
|
4.5
|
3.5
|
2.8
|
1.6
|
Min. dia. of nail(MM)
|
3.8
|
2.8
|
1.8
|
1.2
|
0.9
|
Max. Length of nail(MM)
|
150
|
100
|
75
|
50
|
25
|
Min. length of nail(MM)
|
80
|
50
|
30
|
16
|
9
|
Motor power(KW)
|
5.5
|
4
|
3
|
2.2
|
1.5
|
Nail making speed
|
220pcs/min
|
260pcs/min
|
320pcs/min
|
380pcs/min
|
450pcs/min
|
L*W*H(M)
|
2.5*1.6*1.5
|
2.2*1.6*1.65*
|
2.0*1.4*1.4
|
1.7*1.3*1.4
|
1.5*1.3*1.2
|
Weight(TONS)
|
2.3
|
2
|
1.8
|
1.45
|
1.2
|
Detail Images

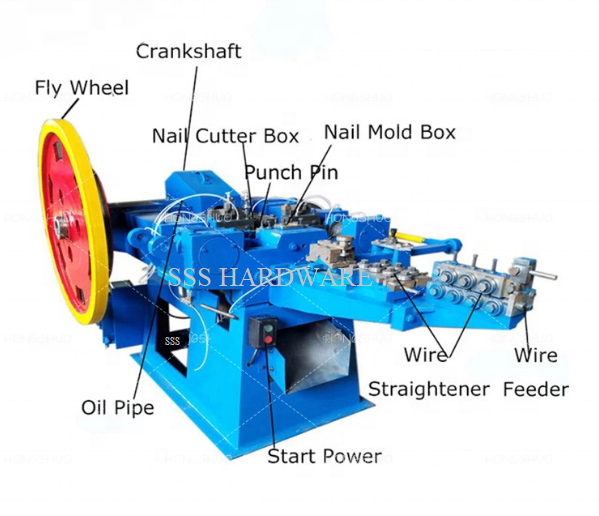

The machine has only one piece punch bar, one pair nail die, and one pair nail cutter, the machine nail die will grip the steel wire and the punch bar will punch to get the nail head, and the nail cutter to cut the nail point. this structure decides that it can make only one nail per time.
This type nail-making machine adopts a plunger structure, driven by 3 phase electric motor and is equipped with auto oil pipe lubrication.
Certifications
Packaging and shipping
1. Shipping port: Shanghai
2. Validity: within 30 days
3. Payment terms: 30% T/T down payment in advance and 70% before shipment
4. Warranty: 1 year from date of installation
5. Installation/Operation/Service/Maintenance Manual: Provided In English
6. In wooden pallet, In plastic film, the spare parts and cabinet packed by wooden box.
Our service
1. All required documents (including Installation/Operation/Service/Maintenance Manual) will be provided in English.
2. Engineer will give free training and guide to labors at customer's site if requested.
3. Commissioning charge is $150/day/engineer,and customer will be asked to provide room, meals, round-trip transportation for engineer.
4. We will offer life-long technical guide and maintenance.
5. Warranty:1year from date of installation.
